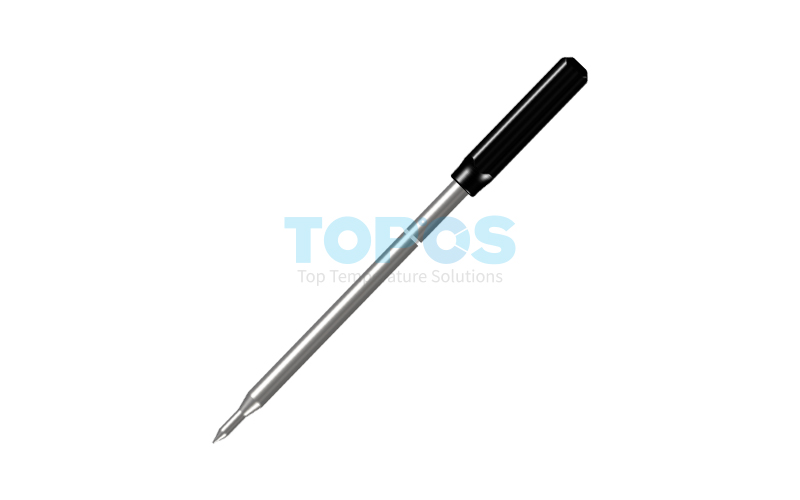

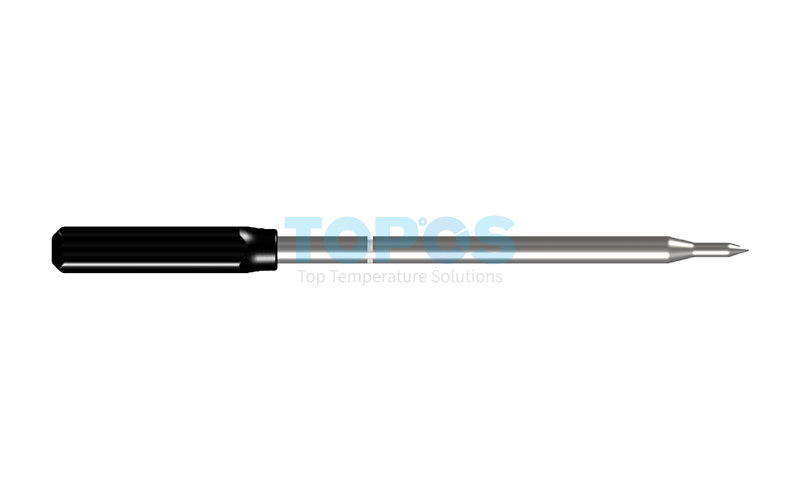

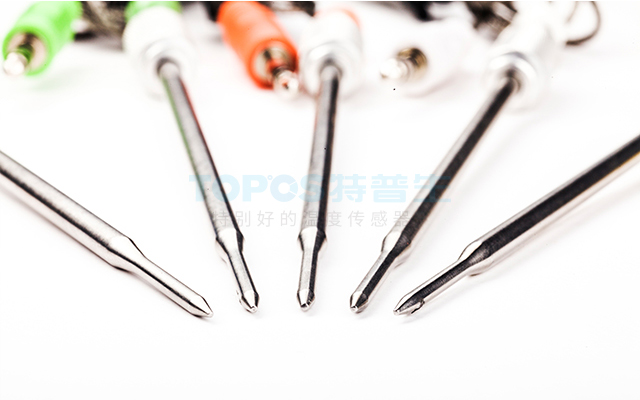

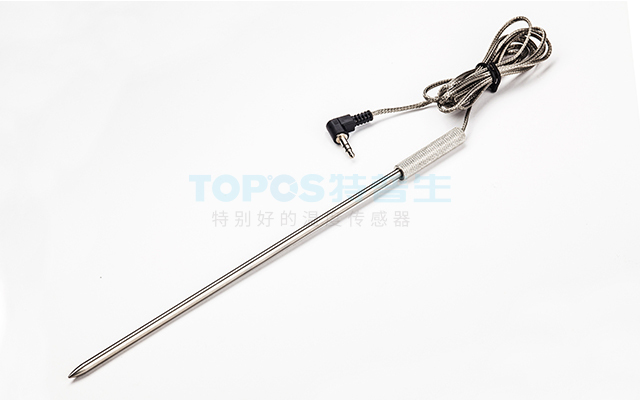

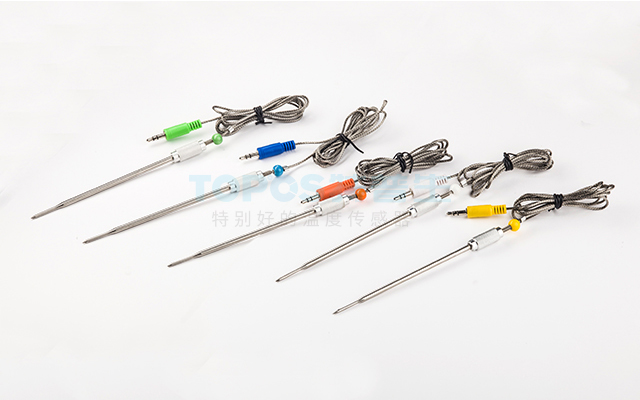

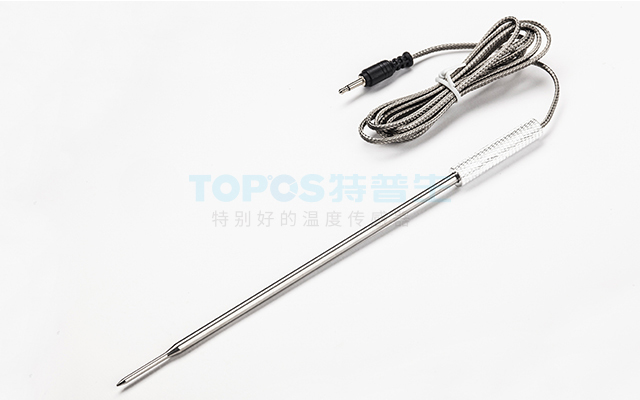

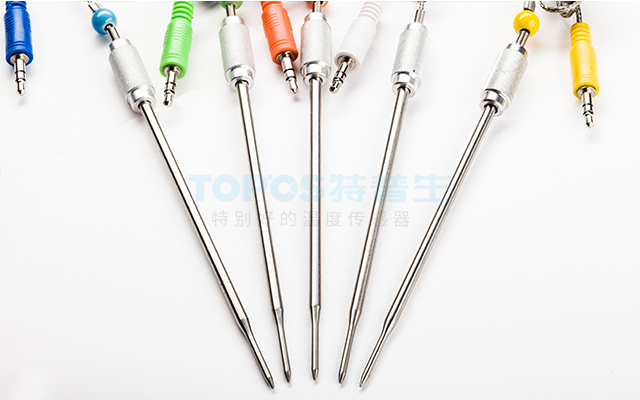

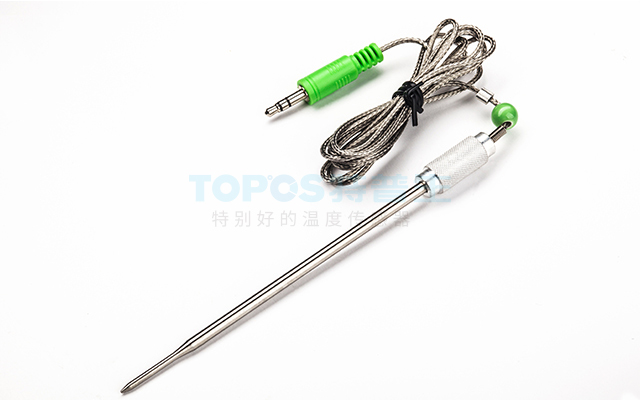

BBQ Meat Probe Temperature Sensor

Material: 0.8mm single-ended glass-sealed thermistor / SUS304 stainless steel probe / 308℃ dual-channel audio steel mesh wire

Operating temperature range: -50〜300℃

Output signal: Analog Signal Output

DOWNLOAD GENERAL INQUIRY

advantages
parameter
dimension
application
Related products
INQUIRY

advantages

1. Adopts 0.8mm single-ended glass-sealed thermistor with fast response speed.

2. Material, length, dimension, chip and heat resistance are all customizable.

3. No stock available, customized samples can be provided.

4. Dedicated temperature sensor for food thermometers, featuring high temperature resistance, fast response, high precision and good stability.

parameter

Nominal Resistance R0	Accuracy Class	Tolerance	Temperature Range

100ohm @ 0℃	1/3 Class B	F 0.1	0℃ ~ 150℃
	Class A	F 0.15	-50℃ ~ 300℃
	Class B	F 0.3	-70℃ ~ 500℃

1000ohm @ 0℃	Class B	F 0.3	-70℃ ~ 500℃

TC 0/100 = 3850; -70°C to +500°C (continuous operation), temporarily usable up to 550°C

Note:

What is the B-value:The B-value is a material constant that describes the resistance-temperature relationship. It reflects the temperature coefficient of resistance between two specified temperatures. Under the same conditions, products with a higher B-value feature greater resistance variation with temperature changes, which means higher temperature sensitivity.

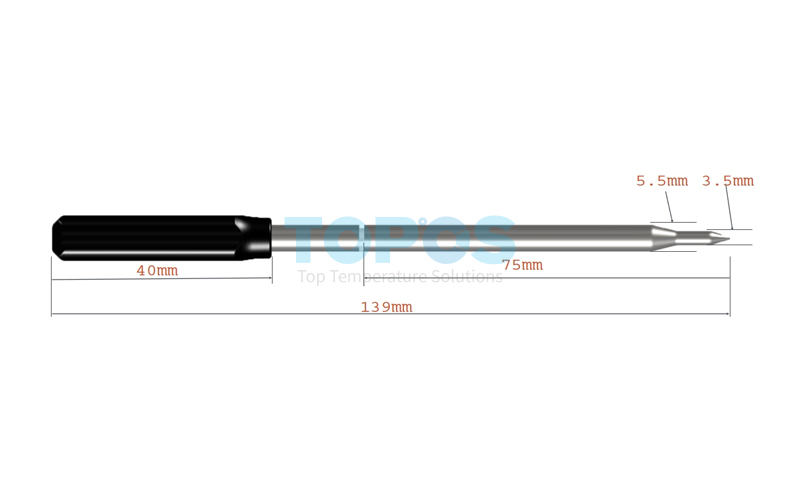

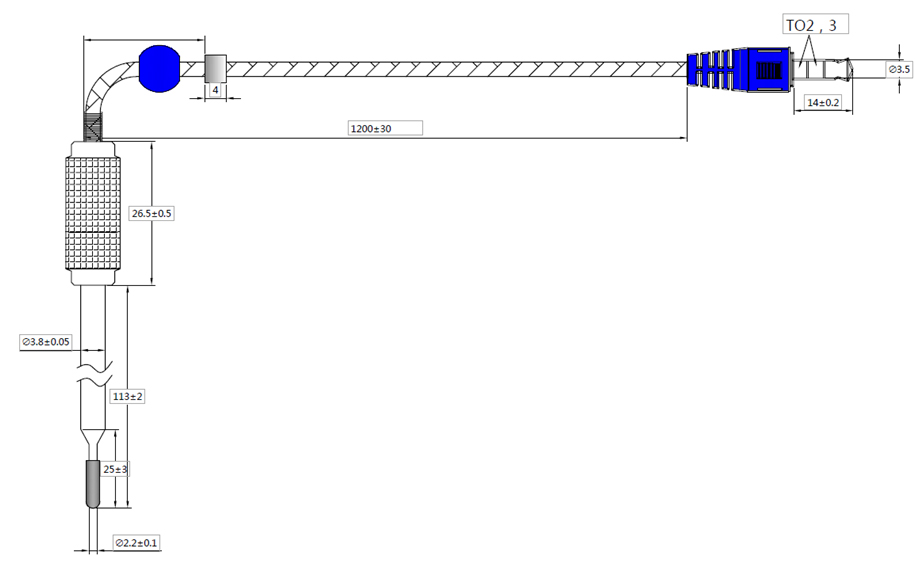

dimension
