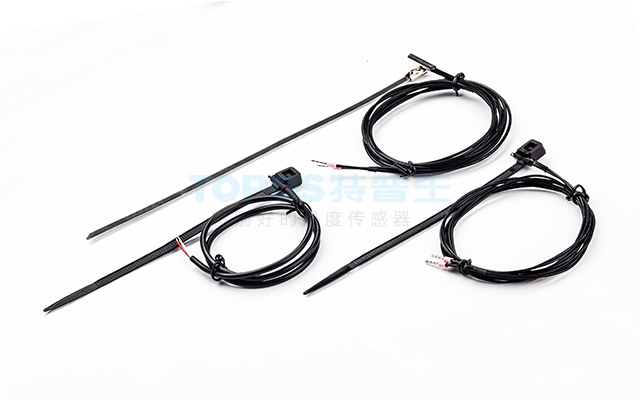

Campus electrical fire temperature detection temperature sensor

Material: NTC glass sealed thermistor/plastic tie/Teflon wire

Operating temperature range: -30〜150℃

Response speed: 3S

Output signal: Analog signal output


1. Quick cable tie casing for quick installation and use
2. Good stability and high reliability
3. Wide resistance range: 2-500K Ω
4. High resistance and B-value accuracy
5. Glass packaging, can be used under high temperatures and drastic changes
6. Small size, sturdy structure, easy to install automatically
7. Working temperature range -30~+150 ℃
8. Fast thermal sensing and high sensitivity



What is the value of B: A material constant that describes the relationship between resistance and temperature. The value of B can reflect the degree of resistance to temperature changes between two specific temperatures. With temperature changes, products with a large B value under the same conditions have a greater change in resistance, which means it is more sensitive.

Resistance value 25 ℃5K10K15K20K50K100K200K
