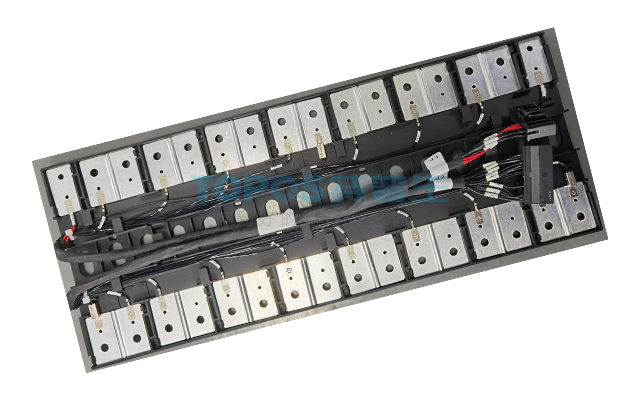

Wire Harness CCS Solution

Material: Injection or blister isolation panels/aluminum bars, etc

Operating temperature range: -50~150℃

Response speed: 3S

Output signal: Analog signal output

advantages

Wire harness: stable signal transmission

Structure: Flexible structure, supporting design changes

Temperature collection: Excellent waterproof and moisture-proof performance

Voltage collection: highly automated

parameter

1.  Isolation board: fireproof and flame-retardant. The material is PC+ABS or PA66, etc.

2.  Acquisition end shell: pure nickel shell, thin shell wall, fast thermal conductivity, and good welding penetration effect.

3.  1060 aluminum bar: lightweight structure, low impedance, and fast heat dissipation.

4.  Connection and fixation: laser welding, firm and beautiful, high degree of automation.

5.  High sensitivity and rapid response (resistance value and B value accuracy can reach ± 1% respectively).

6.  The finished product has a withstand voltage of up to 4200VDC.

7.  Built in high reliability single ended resistor, equipped with patented internal structure technology, with a lifespan of up to 20 years.


Support, can choose injection molding or blister isolation board+wire slot;

Collection components, including wiring harness, FPC, PCB, and FFC;

Temperature sensing collection line, can choose epoxy head, OT terminal, nickel terminal (all including NTC);

The connection mode can be glue, screw, ultrasonic welding or Laser beam welding.

application

Industrial and commercial energy storage, communication energy storage, household energy storage, and portable energy storage
