Material: Semiconductor Ceramic Resistor Chip / High-efficiency Dumet Wire / Glass
Operating temperature range: -50℃~350℃
Response speed: 3S
Output signal: Analog signal output
The MTG2-1/2/3/4/5/6/7 series are radial lead single‑ended glass-sealed type.
Excellent stability and high reliability.
Wide resistance range: 2~500KΩ.
High precision of resistance and B-value.
Glass encapsulated, suitable for harsh conditions such as high temperature and high humidity.
Small size, rugged structure, suitable for automated mounting.
Operating temperature range: -50~+350℃.
Fast thermal response and high sensitivity.

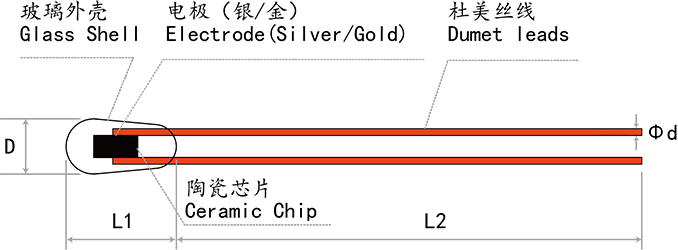

Model | Code | D | L1 | L2 | d |
MTG2-1 | TGM-A | 0.60±0.25 | 2.00±0.15 | 67±5 | 0.15±0.05 |
MTG2-2 | TGM-B | 0.80±0.25 | 2.40±0.50 | 67±5 | 0.15±0.05 |
MTG2-3 | TGM-C | 1.10±0.25 | 4.00±0.50 | 67±5 | 0.20±0.05 |
MTG2-4 | TGM-D | 1.35±0.25 | 3.30±0.50 | 67±5 | 0.20±0.05 |
MTG2-5 | TGM-E | 1.65±0.25 | 4.00±0.50 | 67±5 | 0.25±0.05 |
MTG2-6 | TGM-F | 1.80±0.25 | 3.40±0.50 | 67±5 | 0.25±0.05 |
MTG2-7 | TGM-G | 2.15±0.25 | Max.4.50 | 67±5 | 0.25±0.05 |
1. Temperature control and detection for household appliances such as induction cookers, electric pressure cookers, electric rice cookers, electric ovens, disinfection cabinets, water dispensers, microwave ovens and electric heaters;
2. Temperature detection and temperature compensation for medical equipment as well as OA devices such as copiers and printers;
3. Temperature control and testing for industrial, medical, environmental protection, meteorological and food processing equipment;
4. Over-temperature protection for rechargeable battery packs and chargers;
5. Temperature compensation for instrument coils, integrated circuits, quartz crystal oscillators and thermocouples.
