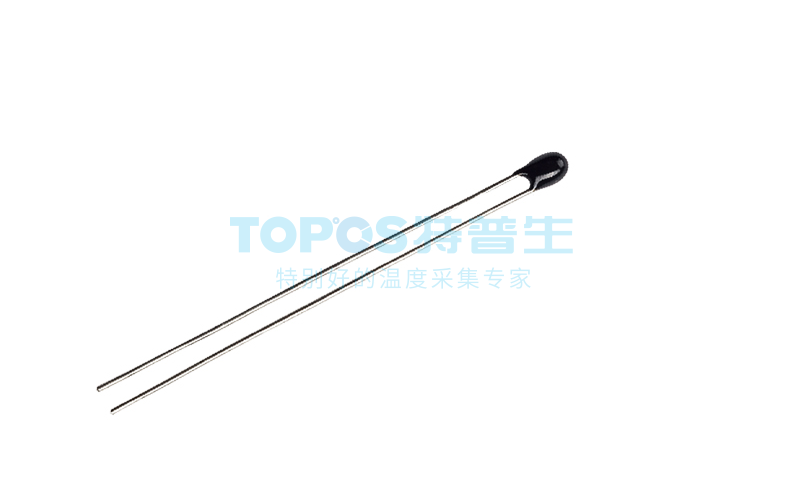

Material: Silicone Resin / Epoxy Resin / Phenolic Resin / Steel Wire & Copper Wire
Operating temperature range: -50℃~350℃
Response speed: 3S
Output signal: Analog signal output

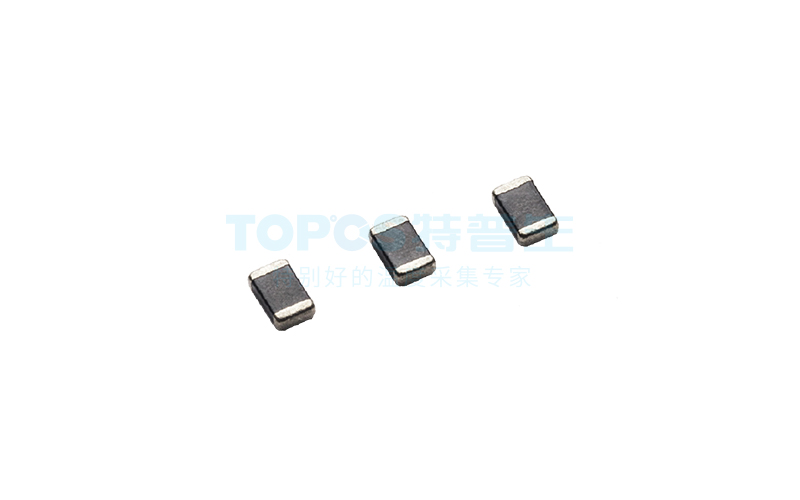

Adopts high-reliability multilayer chip ceramic structure, small size and leadless design, suitable for high-density surface mounting;
The terminal electrode adopts three-layer electroplating process with good solderability and thermal shock resistance, suitable for wave soldering and reflow soldering;
Low distributed capacitance, applicable to high-frequency fields with fast response speed;
Excellent dissipation factor and temperature coefficient, wide operating temperature range: -40~+125℃.

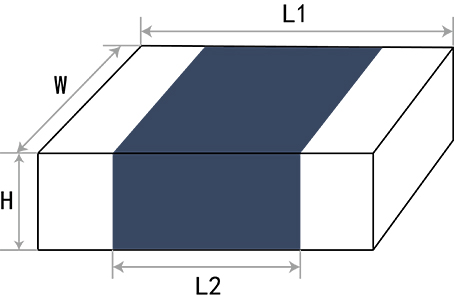

| Model | Dimensions (Unit:mm) | |||
| L1 | W | H | L2 | |
| 0402 | 1.0±0.15 | 0.5±0.15 | 0.5±0.15 | 0.5±0.20 |
| 0603 | 1.6±0.20 | 0.8±0.20 | 0.6±0.20 | 1.0±0.20 |
| 0805 | 2.0±0.20 | 1.2±0.20 | 0.6±0.20 | 1.0±0.20 |
1. Temperature control and detection for household appliances such as induction cookers, electric pressure cookers, electric rice cookers, electric ovens, disinfection cabinets, water dispensers, microwave ovens and electric heaters;
2. Temperature detection and temperature compensation for medical equipment as well as OA devices such as copiers and printers;
3. Temperature control and testing for industrial, medical, environmental protection, meteorological and food processing equipment;
4. Over-temperature protection for rechargeable battery packs and chargers;
5. Temperature compensation for instrument coils, integrated circuits, quartz crystal oscillators and thermocouples.
