Material: Semiconductor ceramic resistor chip / High-efficiency Dumet wire / Glass
Operating temperature range: -50℃〜500℃
Response speed: 3S
Output signal: Analog signal output

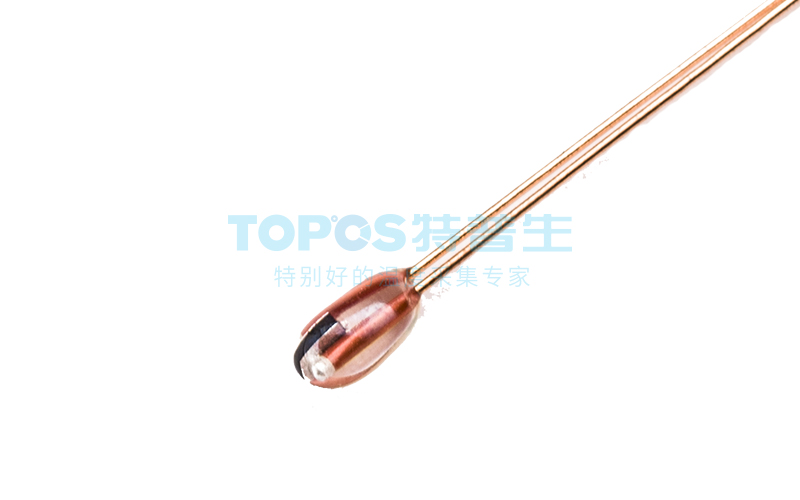

The MTG2-1/2/3/4 series are radial lead single-ended glass-sealed types.
Excellent stability and high reliability.
Wide resistance range: 2~500KΩ.
High precision of resistance and B-value.
Glass encapsulated, suitable for harsh conditions such as high temperature and high humidity.
Small size and robust structure, suitable for automated mounting.
Operating temperature range: -50~+500℃.
Fast thermal response and high sensitivity.
| Resistance @25℃ | 5K | 10K | 15K | 20K | 50K | 100K | 200K |
| B-value (R25/R50) | 3380 | 3950 | 3470 | 4200 | 3977 | 4100 | 4200 |
| Tolerance | 1% | 2% | 3% | 5% |
Note:
What is B-value:It is a material constant describing the resistance-temperature relationship. The B-value reflects the resistance variation degree between two specified temperatures. Under the same condition, a higher B-value means greater resistance change with temperature, namely higher temperature sensitivity.
| Model | B(MAX) | A±0.25 | Lead Diameter D±0.05 | Lead Length L±5 | Thermal Time Constant T63.2 | Dissipation Factor (mW/℃) | Maximum Rated Power |
| MTG2-1 | 3.3 | 1.35 | 0.20 | 70 | 4.5 | 0.80 | 180 |
| MTG2-2 | 4.5 | 2.15 | 0.30 | 70 | 11 | 1.35 | 300 |
| MTG2-3 | 2.4 | 0.80 | 0.15 | 70 | 2.3 | 0.4 | 90 |
| MTG2-4 | 4.0 | 1.65 | 0.25 | 70 | 7.5 | 1.1 | 245 |
For Bluetooth probe, oven and gas stove temperature measurement.
