High precision temperature sensors for medical
Intelligent electrical appliance temperature sensor High precision temperature sensors for medical
  • 20220801330611
  • 20220801840490

Temperature sensors for measuring temperature in the esophagus/rectum/nasopharyngeal head/armpit

Material: White epoxy resin

Operating temperature range: 0-70℃

Response speed: 3S

Output signal: Analog signal output

DOWNLOAD
advantages

1. White epoxy resin packaging structure.
2. All materials comply with medical environmental protection.
3. The accuracy of 37 degrees Celsius can reach plus or minus 0.1 degrees Celsius.

parameter

Thermal time constant: t ≈ 3 seconds (medium: liquid)
Withstand voltage: AC750V for 1 second
Insulation resistance: DC500V above 100M Ω
Resistance value: R37=1.355K ± 0.3% (customizable according to customer requirements)
B value: R25/50=3934K ± 0.3% (customizable according to customer requirements)

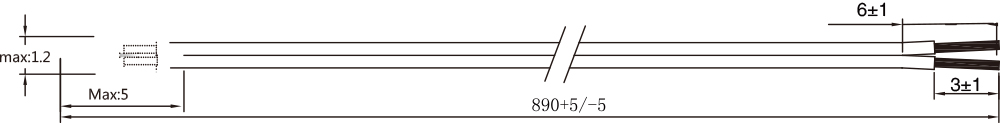

dimension
application

Temperature detection of the esophagus, rectum, nasopharynx, armpits, and armpits
