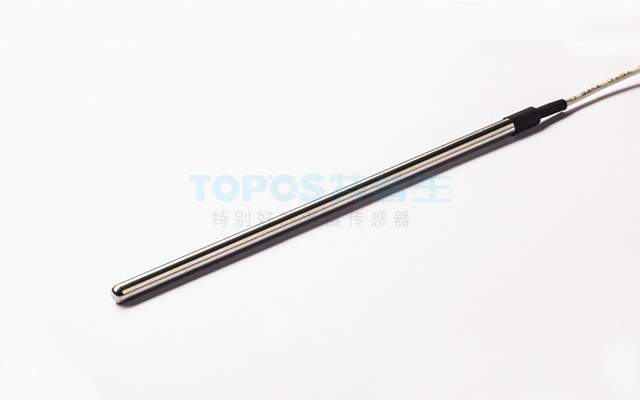

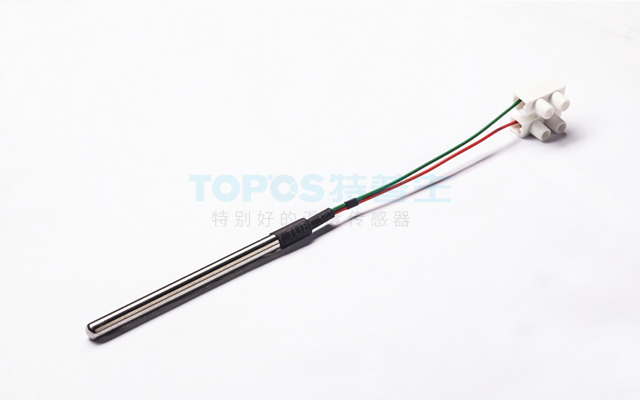

Temperature sensors for HVAC and air purifiers

Material: SUS304 stainless steel housing / High-temperature Teflon wire

Operating temperature range: -40~200℃ (Customizable)

Response speed: 3S

Output signal: Analog Signal Output

advantages

1. Adopts high-temperature resistant and high-stability components with fast response and stable operation.

2. Food-grade SUS304 stainless steel housing, compliant with national food-grade standards.

3. The housing is fixed with epoxy resin and sealed with black heat-shrinkable tubing, offering excellent waterproof performance and high pressure resistance.

4. The quick connector at the tail is suitable for various application scenarios for convenient and fast installation.

5. All products adopt high-temperature resistant materials and professional design, enabling long-term service in high-temperature environments.

parameter
Resistance at 25℃5K10K15K20K50K100K200K
B-Value (R25/R50)3380395034704200397741004200
Tolerance1%2%3%5%


Note:

What is B-Value:It is a material constant that characterizes the resistance-temperature relationship. The B-value reflects the resistance variation degree between two specified temperatures. Under the same temperature change condition, products with a higher B-value feature a larger resistance variation, which means they have higher temperature sensitivity.

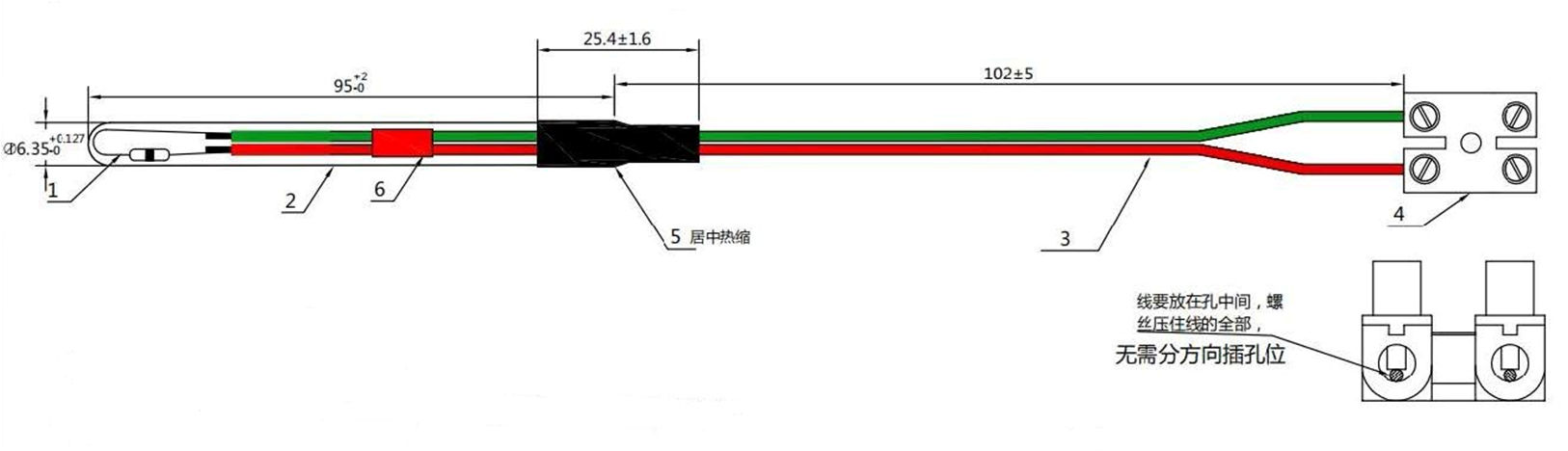

dimension
application

HVAC, Air Purifier, Central Air Conditioning

INQUIRY
*
*
*
*
SHARE
Previous: HVAC Temperature Sensor

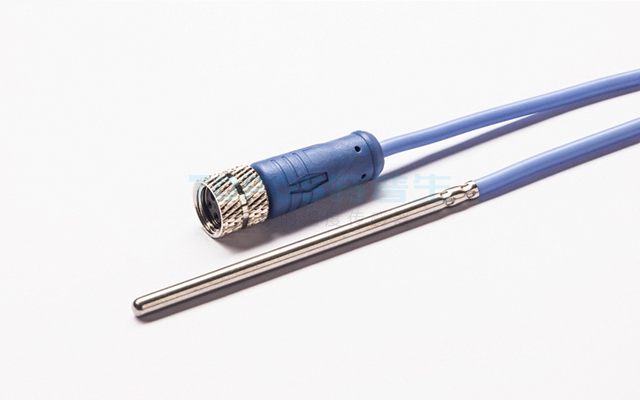

Next: Temperature sensors for HVAC, air purifiers and ovens
