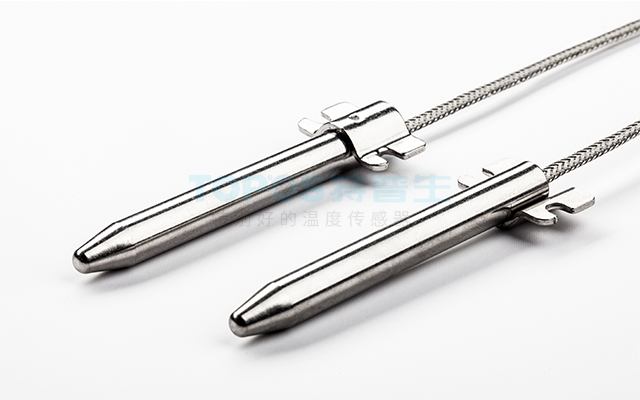

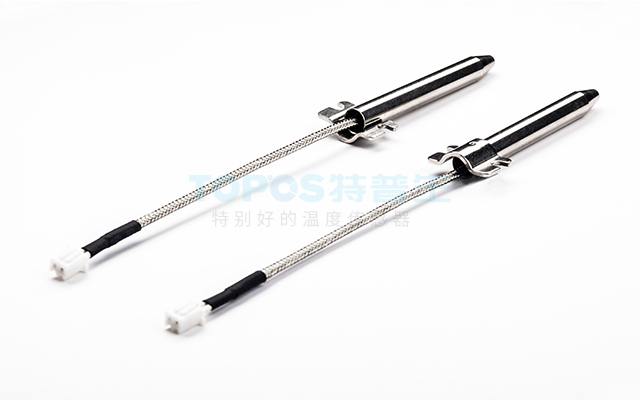

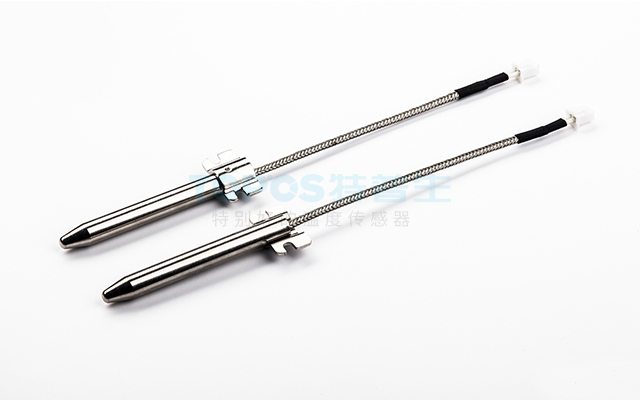

Temperature Probe Sensor for Pellet Smoker

Material: Semiconductor ceramic resistance chip / SUS304 stainless steel housing / High-temperature shielded wire

Operating temperature range: -45〜500℃

advantages
parameter
dimension
application
Related products
INQUIRY

advantages

1. Imported 600℉ high-temperature resistant PT1000 resistance chip. Material, length, dimension and temperature resistance are all customizable.

2. No stock available; samples can be provided.

3. Special high-temperature resistant temperature sensor for wood pellet smokers.

4. Fast response, high precision and excellent stability.

parameter

Nominal Resistance R0	Accuracy Class	Tolerance	Temperature Range

100ohm @ 0℃	1/3 Class B	F 0.1	0℃ ~ 150℃
	Class A	F 0.15	-50℃ ~ 300℃
	Class B	F 0.3	-70℃ ~ 500℃

1000ohm @ 0℃	Class B	F 0.3	-70℃ ~ 500℃

TC 0/100 = 3850; -70°C to +500°C (continuous operation), temporarily usable up to 550°C

Note:

What is the B-value:The B-value is a material constant that describes the resistance-temperature relationship. It reflects the temperature coefficient of resistance between two specified temperatures. Under the same conditions, products with a higher B-value feature greater resistance variation with temperature changes, which means higher temperature sensitivity.

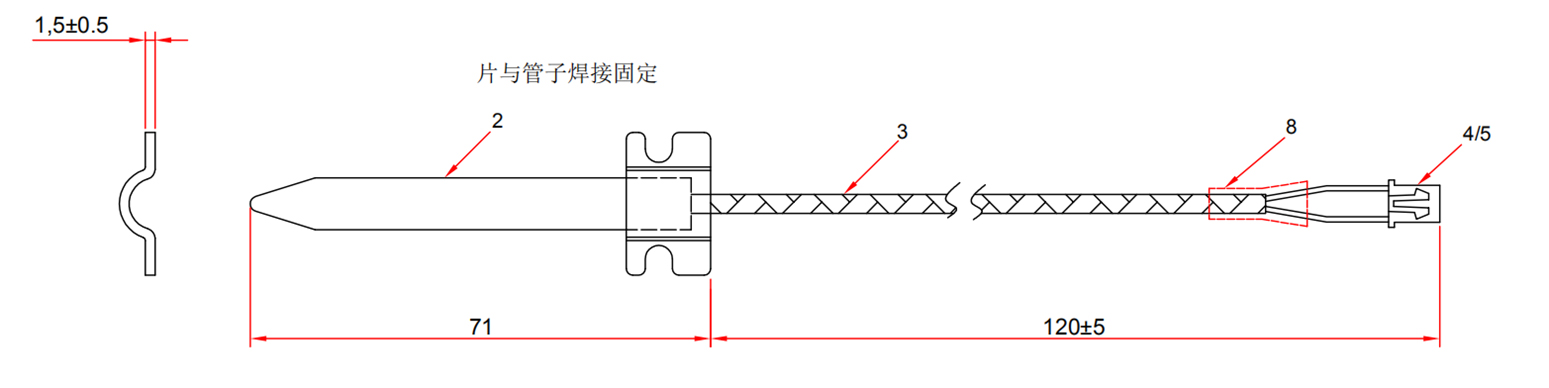

dimension
